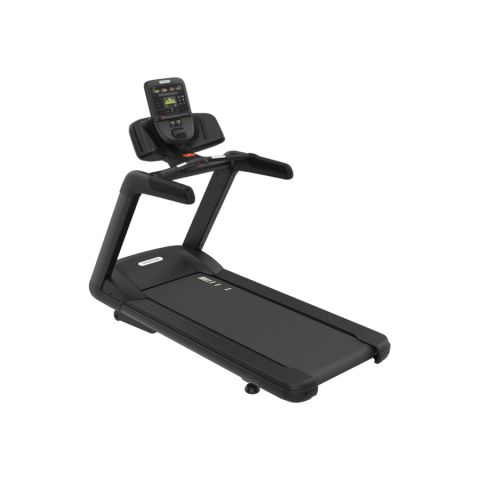

The Experience™ Series 600 Line is a professional treadmill used in corporate wellness studios, personal training studios, multi-family complexes, and physical therapy centers that strikes the optimal balance between durability, reliability, and innovation. The 600 Line of treadmills feature the Precor exclusive Ground Effects® Impact Control System that helps absorb high impact movements and supports a solid and controlled push off. Add to that it features our Integrated Footplant Technology™ that recognized your natural foot speeds and matches every stride for an ultra-smooth feel that enhances your workout experience. The 600 Line of treadmills features the TRM 631 which includes our P31 Advanced LED Display Console available with a Black Pearl frame.
Please note: This is treadmill requires a dedicated 120V/20A circuit with a 5-20R NEMA receptacle to operate in a home.
FEATURES
Drive System Quality & Reliability
The TRM 631 is equipped with a commercial-grade motor that enhances performance, efficiency, and reliability to deliver a treadmill that is ideal for fitness facilities located in multi-family housing complexes, corporations, small municipal service organizations, and many hospitality venues.
Patented GFX Technology
Ground Effects® Impact Control System (GFX) is the improved progressive shock absorption system that absorbs high impact movements and supports a solid and controlled push off.
P31 Console
An LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.
SPECIFICATIONS
EQUIPMENT FEATURES
Cable Management
Optional
Color
Frame:
Black Pearl
Plastics:
Dark Tungsten
Transport Wheels
Yes
Reversible Deck
Yes
Auto Stop
Step sensor detection stops a moving running belt when there is no exerciser.
Water Bottle and Accessories Holder
Dual holders cradle exercisers water bottle to keep it stable. Accessory tray securely supports exercisers cell phone, keeping it front and center, along with ample room for keys, membership card, etc.
Emergency Stop
Safety clip and lanyard attached to the stop switch to immediately turn off power bringing the treadmill to a stop. The lanyard and safety clip can be conveniently attached to a thoughtful tab located underneath the front handrail.
Deck and Belt
Deck is a one-inch Slik-Dek bed with a thin layer of wax to assist in the break-in of the new belt / deck system. The deck is composed of 52 lb / 23.6 kg high-density fiberboard core with phenolic laminate bonded on both sides. Can be flipped to double life.
Deck and belt require no external lubrication.
Rear-deck hinges and front cushioning create a laterally stable platform, reducing shock to the user and providing firm push off.
Ground Effects® Impact Control System
New and improved progressive shock absorption system that absorbs high impact movements and supports a solid and controlled push off.
Elevation System
Elevation system generates up to 1000 lb / 453.6 kg of thrust and operated in compression for reliable operation.
Rollers
Steel tapered rollers keep the belt centered to reduce maintenance.
Frame
New frame design results in an ultra-stable console, solid feel, and quiet operation.
Motor
Integrated Foot Plant Technology™ Drive controller works with a 3 HP peak duty AC induction motor for a smooth, natural feel.
3-phase, sensorless variable frequency drive technology for high reliability and accurate speed control.
Speed
InclineDistance, Pace,
Average Speed
Calories
Heart Rate
Time Elapsed,
Time Remaining% Complete, Time in Zone, Segment Time, Cals/min, Cals/hr, watts, METS, Target HR, Average HR, Elevation Gain
Preset Programs
Weight Loss
Custom Weight Loss HRC
Weight Loss HRC
1 Aerobic
2 Aerobic
Heart Rate
Basic HRC
Custom Weight Loss HRC
Weight Loss HRC
Performance
Track
5K
Gerkin Fitness Test
Variety
Random
1 Cross Country
2 Cross Country
1 Gluteal
2 Gluteal
1 Custom
2 Custom
Interval
1-1 Interval
1-2 Interval
1-3 Interval
Custom Interval
Manual
Manual
HEART RATE MONITORING
Touch
Touch heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.
Telemetry
Equipped for heart rate
telemetry reading using a chest strap.
INTEGRATED ENTERTAINMENT OPTIONS
Mobile Device Charger
Yes
Reading Rack
Integrated
Personal Viewing System (PVS)
Optional
Entertainment Cap / Wireless Receiver
Optional
NETWORK CAPABILITIES
Diagnostics
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.
CSAFE Enabled
Yes
EQUIPMENT SPECIFICATIONS
Roller Diameter (inches / cm)
2.5 in / 6.35 cm
Power Cord Management
ICE 320-C19 inlet supporting Schuko and BSI plugs
Handrail Length (inches / cm)
18 in / 45.7 cm / 48 cm
Maximum User Weight
350 lb / 159 kg
Step-up Height
8.4 in / 21.3 cm
Speed Range
0.5 - 12 mph / 0.8-19.2 km/h
Decline / Incline Range
0% to 15% incline in 0.5% increments
Running Surface (L X W)
60 X 22 in / 153 X 56 cm
EQUIPMENT DIMENSIONS AND WEIGHT
Height with PVS
78 in / 198 cm
Length
83 in / 211 cm
Width
35 in / 89 cm
Equipment Weight
325 lb / 147 kg
Height
62 in / 157.5 cm
SHIPPING DIMENSIONS AND WEIGHT
Length
92 / 42 in / 234 / 107 cm
Width
39 / 39.5 in / 99 / 100 cm
Height
23.5 / 24 in / 60 / 61 cm
Shipping Weight (base equipment)
427 lb / 194 kg
POWER REQUIREMENTS
Equipment
Powered
International 240 VAC
IEC 320-C19 inlet supporting applicable country-specific power cord
U.S. & Canada 240 VAC
Dedicated 220V- 240V/20A circuit with 6-20R NEMA receptacle
U.S. & Canada 120 VAC
Dedicated 120V/20A circuit with 5-20R NEMA receptacle
Personal Viewing Screen (PVS)
Powered
Cord Length
12 feet / 3.7 meters
REGULATORY
UL
UL 1647
FCC
FCC
ETL
ETL
CE
CE
EN957
EN957 / ASTM
WARRANTY
Frame: Lifetime
Parts: 10 Years
Console: 3 Years
Labor: 1 Year
High Wear items (i.e. headphone jacks, usb connectors): 90 days
